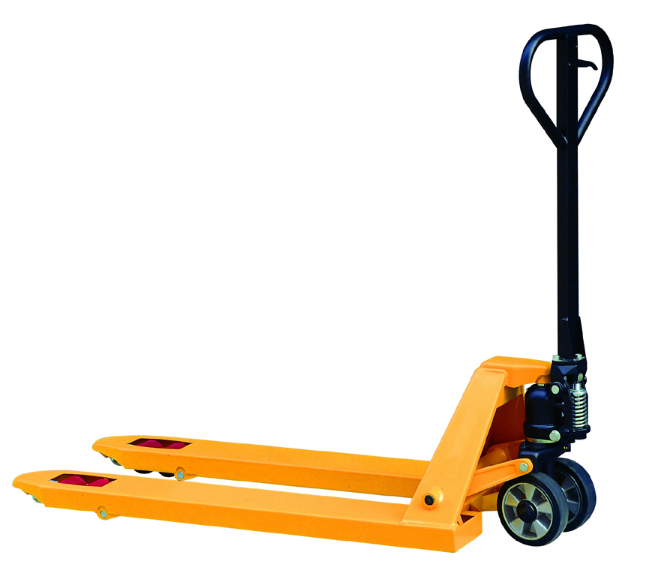

Hydraulic pallet truck

Features：

1) Rubber coated handle comfortable even under extreme temperature conditions.

2) Fully sealed galvanized hydraulic unit housing.

3) Single valve cartridge for easy maintenance.

4) Powder coated chassis made of high grade steel.

5) Lead-in and lead-out rollers reduce damage to pallets.

Specifications：

Model		DF20S	DF20L	DF25S	DF25L	DF30S	DF30L
Capacity	kg	2000	2000	2500	2500	3000	3000
Lifting height	mm	115
Min.fork height	mm	85(75)
Max.fork height	mm	200(190)
Fork length	mm	1150	1220	1150	1220	1150	1220
Overall width	mm	550	685	550	685	550	685
Fork width	mm	160
Load roller	mm	Tandem Φ80×70,Single Φ80×93,Nylon,Polyurethane
Steering wheel	mm	Φ200×50 Nylon, Polyurethane or Rubber
Net weight	kg	75	78	76	79	85	87
