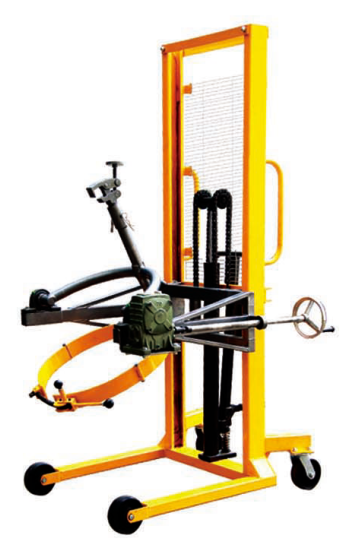

Hydraulic Drum Stacker / Lifter
- Product description: Hydraulic Drum Stacker / Lifter
Easy
to lift , transport and tilt 55gallon(200L) drums.
Available to carry the drum to rack (lower than 1350m).
Tilt the drum 120 degree for oil empty.
Compact and reliable mechanism system to handle drums.
It can lock a drum in vertical position to avoid spills
Easy lift with pedal when unload.
|
Model |
DA40B |
|
Lifting Capacity |
400kg |
|
Drum Size |
572mm(22.5" Diameter ), 210Lifters(55 gallon) |
|
Lifting Height |
1350mm |
|
Lifting per stroke |
13mm |
|
Cycle for Total120degree pour |
10 |
|
Front Wheel Dia X Width |
150 X 50mm |
|
Rear Castor Dia X Width |
180 X 50mm |
|
Overall Dimension |
1315 X 860 X 1960mm |
|
Net Weight |
190 kg |
