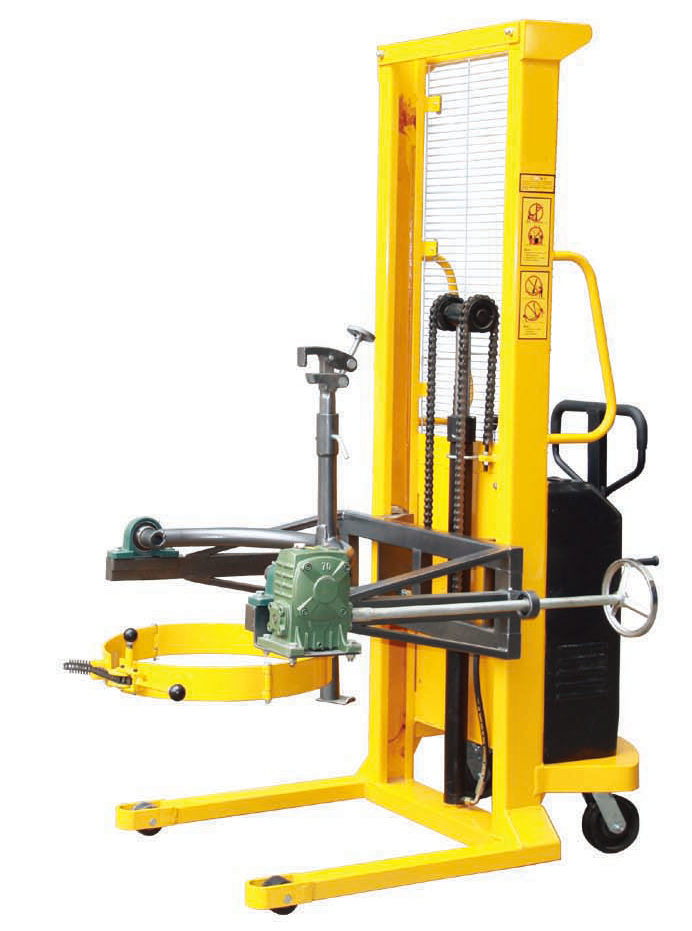

Electric Drum Stacker / Lifter

Features：

Two-stage vertical-lift drum pourers allow you to pour a drum up to 245cm high

Power lift with electric drum tilt

Model DA450-1: Equipped with weighing scale allow you to weigh your drum while you pour to dispense precise amounts as needed

Specifications：

Model		DA450	DA450-1
Rated Capacity	(Kg)	450	450
Max. Lifting Height	(mm)	2450	2450
Acceptable Drum Type		steel and plastic, fiber
Powered Lifting	(yes/no)	yes
Drum Tilting (electric/manual)		electric
With Weighing Scale	(yes/no)	no	yes
Lifting Speed	(mm/s)	120	120
Rotating Speed of Dumper		180°/30s	180°/30s
Load Rollers Size	(mm)	Ø80x55	Ø80x55
Steering Wheel Size	(mm)	Ø150x50	Ø150x50
Size Between Legs(Inner/Out)	(mm)	640/800
Leg Length	(mm)	740	740
Turning Radius	(mm)	1750	1750
Lifting Motor Power	(KW)	1.5	1.5
Battery	(V/AH)	12/120
Charger for Stacker	(V)	12
Charger for Weighing Scale	(V)	6
Overall Size(LxWxH)	(mm)	1400x950x1920	1400x950x1920
Net Weight	(Kg)	302	314
