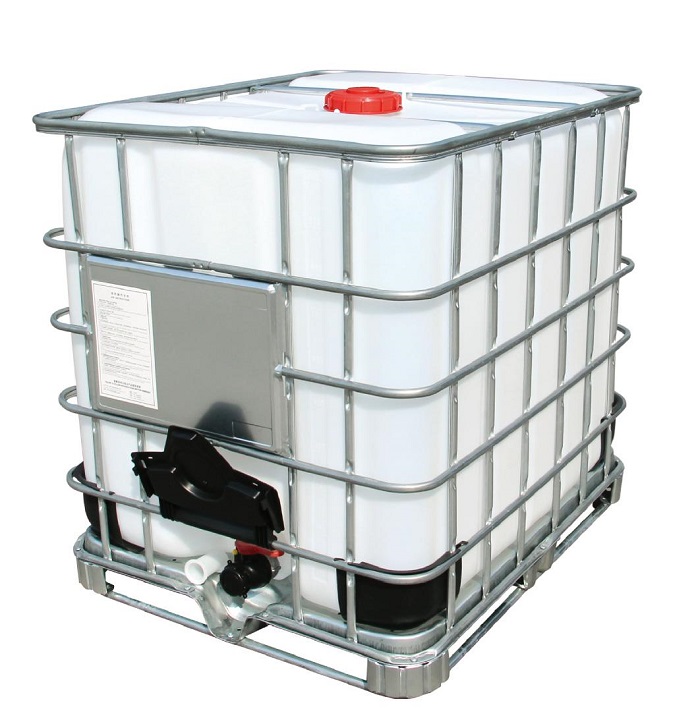

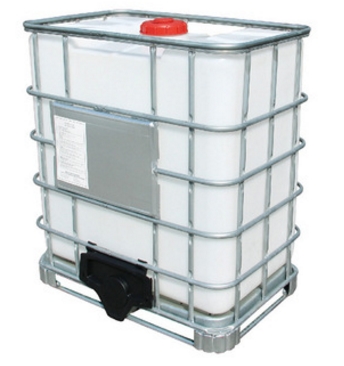

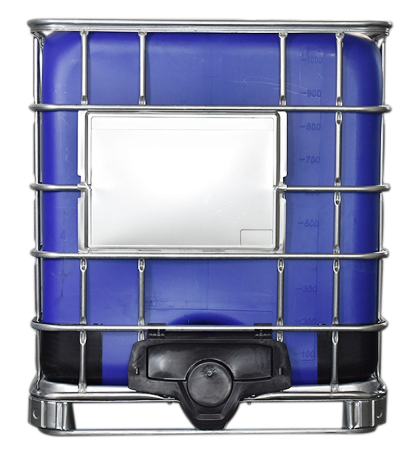

  • Product description: 1000L IBC tanks
  • INQUIRY


The IBC tank is the best choice of liquid packaging materials. Safe and environmental friendly, easy to mechanical loading and unloading, saving storage and transportation space and convenient filling and discharge, IBC has now become a new generation of liquid packaging products after the steel drums and plastic barrels. IBC tanks is widely used in chemical, pharmaceutical, oil and food industries, and is suitable for the transportation of dangerous liquids of Ⅱ,Ⅲ class and non dangerous liquids.

Features:

1.Frame and pallet are made of steel tubes and adopt heat treatment as well as hot dip galvanized. So the whole frames have the advantages of light weight, good flexibility, large capacity and standing the impact of external forces of the accident. Pallets are made of steel material with acid, alkali and corrosion resistance .Besides, pallets have a rational structure that can be loaded and unloaded by forklift and withstand accidental drops and heavy container stacks.

2.IBC tank is equipped with valves resistant to acid, alkali, corrosion. As the material of valve is same with container, the compatibility is good. Besides, it is convenient, reliable and environmental friendly to use the valve to discharge and clean it.

3.To ensure the safety, the container lid is equipped with air vent to avoid overpressure caused by resolution of cargo.

Specifications:

Item

Specification

Model

IBC-1000

IBC-500

Rated Volume(L)

1000

500

Brimful Volume(L)

≥1050

550

Overall Dimension(mm)

1200x1000x1150

660x1000x1150

Top cap Mouth diameter

150

150

Weight for Inner Tank(kg)

15.5

15

Weight for IBC Tank(kg)

58

43

Valve outside diameter(mm)

50

50

Wall Thickness(min)

≥1.5mm

≥1.5mm

Outlet Valve(discharge valve)

DN50 ball valve& butterfly valve

DN50 ball valve& butterfly valve

Height for Pallet(mm)

120

120

Height for forklift holes(mm)

90

90

Length for forklift holes(mm)

795

795
